Optical fiber jumper is also called (optical fiber connector) is split between the optical fiber and optical fiber can be unloaded (active) devices and optical fiber jumper so how to connect the optical fiber jumper connection is correct, what better?
Optical fiber jumper is to connect the two ends of the optical fiber, the optical energy output by transmitting the optical fiber can be maximally coupled to the receiving fiber, and the impact on the system caused by its involvement in the optical link is minimal.
Optical fiber jumper connection method
The fiber is divided into single and double mode, the transmission distance of single mode is about 1500, and the dual mode can reach 10 kilometers. The fiber can be converted into RJ45 ordinary cable or RS232 signal through optical cable.
The general optical fiber jumper connected to the splitter or optical distribution frame, optical fiber jumper connection optical transceiver, optical transceiver converts light signals into electrical signals we usually use. Optical fiber jumper is link ends of equipment, usually connected with fiber box is the head of the ST, the switch module fiber optical transceiver LC head, SC head, optical transceiver and ODF frame FC head.

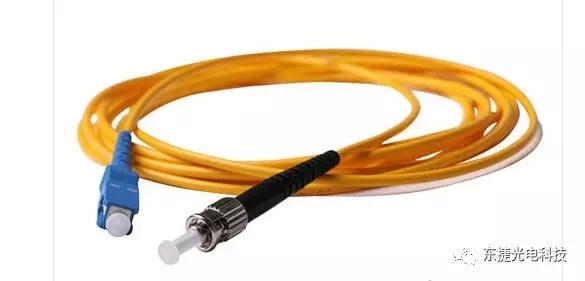

Fiber jumper is to connect 2 optical fiber devices, there are many models, such as ST-ST, ST-LC, LC-LC, ST-SC, etc., choose what type depends on your optical fiber device interface is ST or LC, or SC. Jumper is also divided into single and dual mode.
Here is an example of an optical fiber jumper connection:
Telecom fiber to the enterprise, is usually the first of two mode fiber to the enterprise computer room, and then into the transmitter, converted into the enterprise firewall for RJ45 signal, and then into the CORE, in can be converted to optical fiber by optical fiber transceiver and optical fiber, and optical transmission through the internal to each room.
